This is a guide for Deploy Azure functions for Splunk via Azure DevOps Pipelines, follow these steps:

Login to your azure account and open your portal home page
Go to your Subscriptions page

Select the subscription you will use for deployment from Azure DevOps, take note of the Subscription name and Subscription ID , here we will name it [[SUBSCRIPTION_NAME]] and [[SUBSCRIPTION_ID]]

Create a Service Principal in Azure CLI, execute this command, provide the service principal name, here we will name it : [[ServicePrincipalName]]

az ad sp create-for-rbac -n [[ServicePrincipalName]]

The result is a JSON output like this:

{
  "appId": "aaaaaaaa-bbbb-cccc-dddd-eeeeeeeeeeee",
  "displayName": "[[ServicePrincipalName]]",
  "password": "this-is-the-service-principal-password",
  "tenant": "aaaaaaaa-bbbb-cccc-dddd-eeeeeeeeeeee"
}

Take note of the appId, password and tenant, as they will be used later
Grant Contributor permission to this service principal, in the Azure portal: go to Subscriptions and click on the subscription you will use for deployment from Azure DevOps
In the left pane, select Access control (IAM), then click on Add role assignment

Go to the tab Privileged administrator roles and select the role Contributor, click Next

Click Select members, filter the members list with the name of the new Service Principal, click on the Service Principal, click Select, click Next, then click Review + assign

Create a resource group for the deployed application, take note of the name of this resource group, here we will name it [[DEPLOYMENT_RESOURCE_GROUP]]

Create a Key Vault in the new resource group, take note of the name of the Key Vault, here we will name it [[KEY_VAULT_NAME]]

Open the new Key Vault, go to group Settings - Access configuration, the check the option Azure Resource Manager for template deployment, then click button Apply

Add three secrets with the values for access to the Teams application:
- TenantID
- ClientID
- ClientSecret

In order to make this steps more simple, use a GitHub account linked to the same email in your Azure DevOps account
Login to https://dev.azure.com, use the login option "Login with GitHub" and use GitHub account we mentioned before, accept to link your Github account with Azure DevOps
Select or create a new project
You will create a service connection, go to Project settings below the left pane, then go to Service connections, click on New service connection

Select Azure Resource Manager, click Next

Select Service principal (manual), click Next

Fill in the configuration with the collected data in previous steps:
- Environment = Azure Cloud
- Scope Level = Subscription
- Subscription Id = collected [[SUBSCRIPTION_ID]]
- Subscription Name = collected [[SUBSCRIPTION_NAME]]
- Service Principal Id = appId from the creation of the new Service Principal
- Authentication = Service Principal Key
- Service Principal Key = password from the creation of the new Service Principal
- Tenant ID = tenant from the creation of the new Service Principal
- Service connection name = provide the name for the connection, here we will name it [[SERVICE_CONNECTION_NAME]]

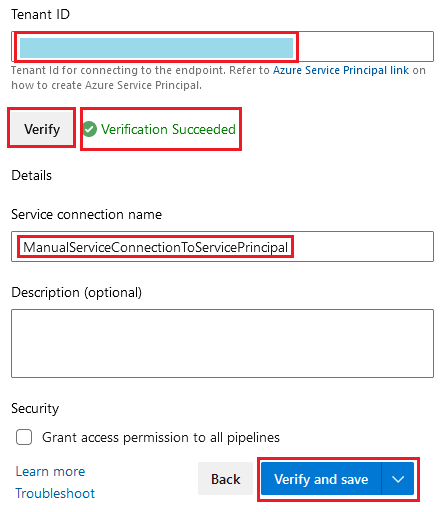

Click the button Verify and after successful check click Verify and save

Login to Github.com using the account linked to the same email in your Azure DevOps account, as we mentioned before
Open the url https://github.com/uxmapp/azure-functions-splunk

Create a fork of this repository in your account

Clone the forked repository in your local machine
Select a name for the deployed functions, here we will name it [[DEPLOYED_FUNCTIONS_SPLUNK_GRAPH]]
Add the following file for configuration of parameters, replace all the configuration values collected before:

graph\deploy\parameters.json

{
	"$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#",
	"contentVersion": "1.0.0.0",
	"parameters": {
		"appName": {
			"value": "[[DEPLOYED_FUNCTIONS_SPLUNK_GRAPH]]"
		},
		"TenantID": {
			"reference": {
				"keyVault": {
					"id": "/subscriptions/[[SUBSCRIPTION_ID]]/resourceGroups/[[DEPLOYMENT_RESOURCE_GROUP]]/providers/Microsoft.KeyVault/vaults/[[KEY_VAULT_NAME]]"
				},
				"secretName": "TenantID"
			}
		},
		"ClientID": {
			"reference": {
				"keyVault": {
					"id": "/subscriptions/[[SUBSCRIPTION_ID]]/resourceGroups/[[DEPLOYMENT_RESOURCE_GROUP]]/providers/Microsoft.KeyVault/vaults/[[KEY_VAULT_NAME]]"
				},
				"secretName": "ClientID"
			}
		},
		"ClientSecret": {
			"reference": {
				"keyVault": {
					"id": "/subscriptions/[[SUBSCRIPTION_ID]]/resourceGroups/[[DEPLOYMENT_RESOURCE_GROUP]]/providers/Microsoft.KeyVault/vaults/[[KEY_VAULT_NAME]]"
				},
				"secretName": "ClientSecret"
			}
		}
	}
}

Go to the forked repository in Github, navigate to the file graph/deploy/azureDeploy.json,
click on the button "Raw"

copy the URL you just opened

The URL will be similar to this:

https://raw.githubusercontent.com/[[GITHUB_ACCOUNT_ID]]/[[FORKED_REPOSITORY]]/master/graph/deploy/azureDeploy.json

In this URL you must replace your [[GITHUB_ACCOUNT_ID]] and your [[FORKED_REPOSITORY]]
Based on this URL you will add one more similar URL for the file parameters.json:

https://raw.githubusercontent.com/[[GITHUB_ACCOUNT_ID]]/[[FORKED_REPOSITORY]]/master/graph/deploy/parameters.json

Select a name for the deployment, here we will name it [[DEPLOY_AZURE_FUNCTIONS_SPLUNK_APP]]
Select a name for the deployed application, here we will name it [[DEPLOYED_FUNCTIONS_SPLUNK_GRAPH]]
Add file for CI/CD, replace all the configuration values collected before, note that the file "parameters.json" doesn't exist yet but it will be committed soon:

azure-pipelines.yml

# Starter pipeline
# Start with a minimal pipeline that you can customize to build and deploy your code.
# Add steps that build, run tests, deploy, and more:
# https://aka.ms/yaml

trigger:
- master

pool:
  vmImage: ubuntu-latest

steps:
- task: AzureResourceManagerTemplateDeployment@3
  inputs:
    deploymentScope: 'Resource Group'
    azureResourceManagerConnection: '[[SERVICE_CONNECTION_NAME]]'
    subscriptionId: '[[SUBSCRIPTION_ID]]'
    action: 'Create Or Update Resource Group'
    resourceGroupName: '[[DEPLOYMENT_RESOURCE_GROUP]]'
    location: 'North Europe'
    templateLocation: 'URL of the file'
    csmFileLink: 'https://raw.githubusercontent.com/[[GITHUB_ACCOUNT_ID]]/[[FORKED_REPOSITORY]]/master/graph/deploy/azureDeploy.json'
    csmParametersFileLink: 'https://raw.githubusercontent.com/[[GITHUB_ACCOUNT_ID]]/[[FORKED_REPOSITORY]]/master/graph/deploy/parameters.json'
    overrideParameters: '-appName [[DEPLOYED_FUNCTIONS_SPLUNK_GRAPH]]'
    deploymentMode: 'Incremental'
    deploymentName: '[[DEPLOY_AZURE_FUNCTIONS_SPLUNK_APP]]'

Commit these files and push to your forked repository
Go to https://dev.azure.com, open your project, go to Pipelines, click on New pipeline, in tab Connect select GitHub

In tab Select select your forked repository, you may be prompted Approve & Install Azure Pipelines, approve this and any other prompt

Next select Existing Azure Pipelines YAML file and then select the branch and the file azure-pipelines.yml (maybe this step is done automatically)
In the last step click Run

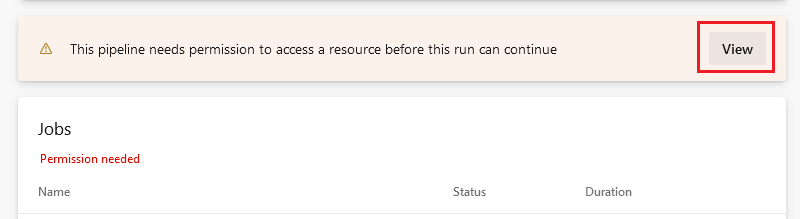

On the first execution you need to grant permissions on the service connection, click on the button View

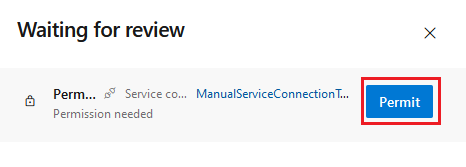

The click on the button Permit

When the pipeline is done executing, review your azure resources, the new functions should be added to the selected resource group

After this, any commit to the forked repository will trigger a pipeline, the pipelines can be triggered manually as well
