Monitoring IIS logfiles

  • Updated
Print Friendly and PDF

A universal forwarder can be used to collect IIS logfiles from servers.

  • Enable TCP reciving port
    Add TCP reciving port under Settings -> Forwarding and receiving -> Receive data, default is port 9997 but can be customized


  • Firewall ports have to be opened in GCP (SaaS) and on the server (On-Premise) to allow connections on port 9997  (9997 can be customized) and 8089 (Can be reversed proxied).

  • Download universal forwarder that matches the used Splunk version from https://www.splunk.com/en_us/download/universal-forwarder.html

  • Install universal forwarder via command line, replace {GENERATE_PASSWORD} with password and customername.uxmapp.com with the DNS name of the server receiving the data.

    msiexec.exe /i splunkforwarder-9.0.2-17e00c557dc1-x64-release.msi AGREETOLICENSE=yes SPLUNKUSERNAME=splunkadmin SPLUNKPASSWORD={GENERATE_PASSWORD} DEPLOYMENT_SERVER=https://customername.uxmapp.com:8089 RECEIVING_INDEXER="customername.uxmapp.com:9997" /quiet

  • Setup app to be deployed to universal forwarders
    Login to deplyment server or search head that configured during install under DEPLOYMENT_SERVER=X

    cd /opt/splunk/etc/deployment-apps/
mkdir -p deployed_app_name/default
nano deployed_app_name/default/inputs.conf
chown -R splunk:splunk ./deployed_app_name
    For IIS monitoring you can add:
    inputs.conf
    [monitor://C:\inetpub\logs\LogFiles\W3SVC1]
disabled = false
ignoreOlderThan = 30d
sourcetype = uxm:iis
index = uxmapp_iis

    props.conf

    [uxm:iis]
DATETIME_CONFIG =
INDEXED_EXTRACTIONS = w3c
LINE_BREAKER = ([\r\n]+)
MAX_TIMESTAMP_LOOKAHEAD = 32
NO_BINARY_CHECK = true
SHOULD_LINEMERGE = false
category = Web
description = W3C Extended log format produced by the Microsoft Internet Information Services (IIS) web server
detect_trailing_nulls = auto
disabled = false
pulldown_type = 1

    Reload the deployment server by executing:

    sudo runuser -l splunk -c '/opt/splunk/bin/splunk reload deploy-server'

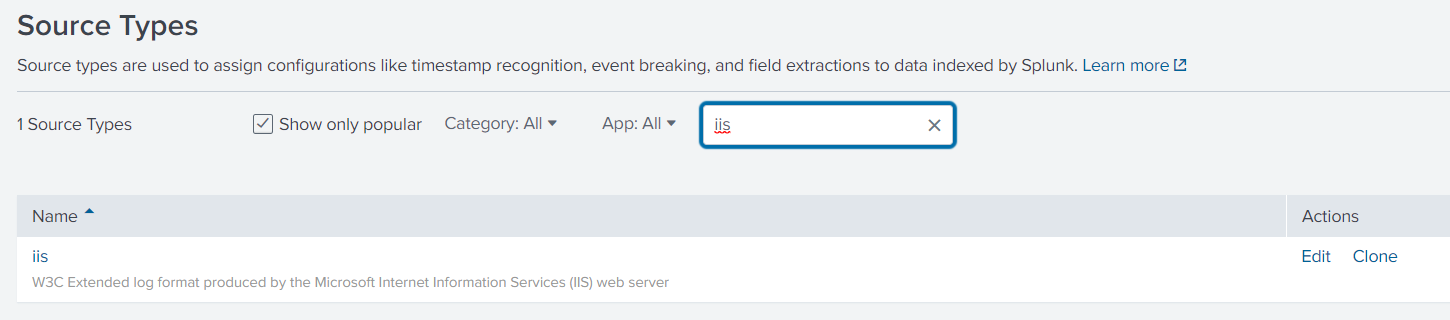

    You can clone the iis sourcetype on the indexer under Settings -> Source types to recieve events as uxm:iis to comply with the OEM License restrictions.


  • Assign universal forward to deployment
    See https://docs.splunk.com/Documentation/Splunk/9.0.2/Updating/Updateconfigurations

    Create serverclass under Settings -> Forwarder Management

    Add the apps and clients to the new serverclass.

  • Data will begin to be collect at the selected index, you can use the attached IIS dashboard to see the data

For more information see examples at: https://docs.splunk.com/Documentation/Splunk/9.0.2/Updating/Extendedexampledeployseveralstandardforwarders
