Endpoints admin dashboard
The Endpoints admin dashboard allows users to inspect a list of registered endpoints and execute actions on the list.
The endpoints are registered by installing the UXM Desktop Agent, once the Agent is connected to the UXM server, the endpoint is automatically registered within 5 minutes when update_kvstores.py script is executed.
The admin dashboard allows the following actions:
- Execute searches on the endpoint list
- Edit details
- Enable/Disable the endpoints
- Redirect to the main endpoint dashboard

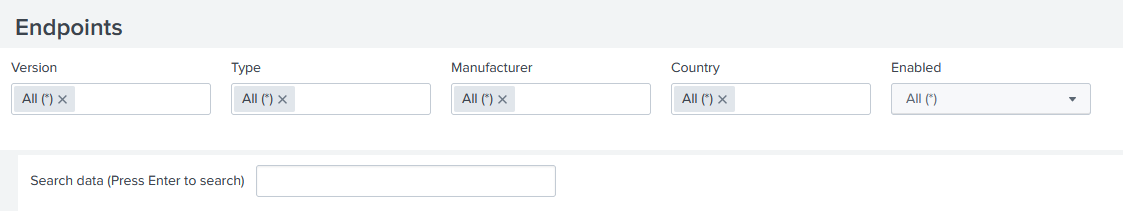

Search and filters
The user can execute searches filtering by several fields:
- Version (version of the UXM Desktop Agent)
- Type (desktop, laptop, server)
- Manufacturer
- Country
- Enabled (Yes/No)
- Search data (filter by text)
The Search data filter is applied on the following fields:
- Hostname
- Model
- Tags
- Agent version
- Manufacturer
- Country
- Internal IP
- Public IP
Edit Endpoint details

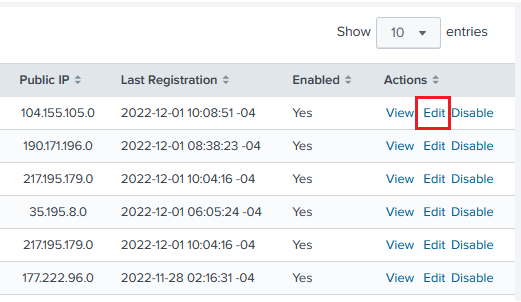

The Edit action is in each endpoint of the list, it allows to edit endpoint details:

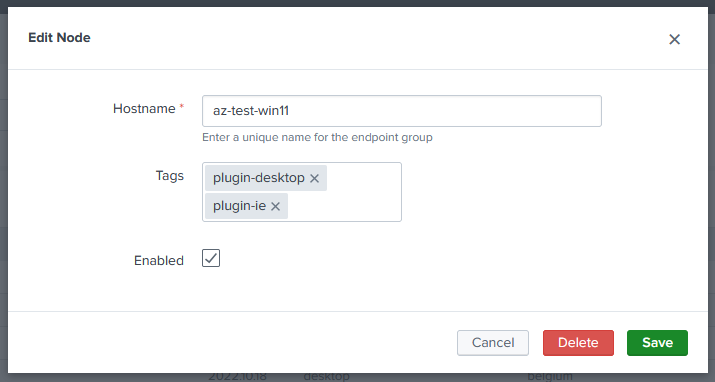

The Endpoint details screen:
- The Hostname is read-only.
- The list of Tags can be edited, it allows to select multiple tags from a list of existing tags and also add new ones.
- The attribute Enabled can be checked/unchecked.
- The endpoint can be Deleted, if so then information about group assignments and node statistics are automatically removed as well.
Enable action

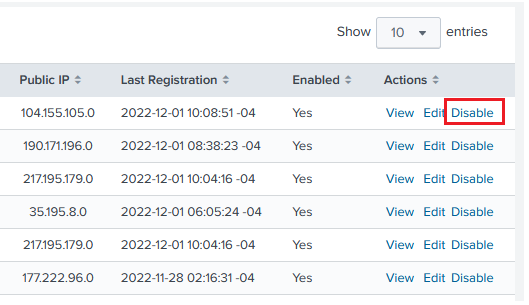

The action for Enable/Disable is in each endpoint of the list:
Before Disable a confirmation screen is displayed:
View action

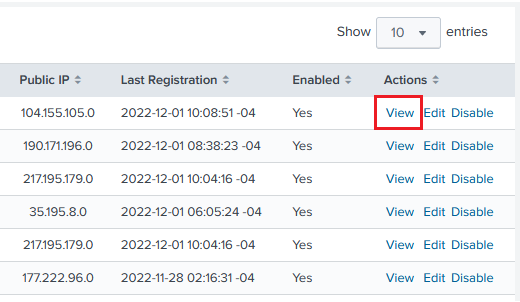

The View action is in each endpoint of the list:

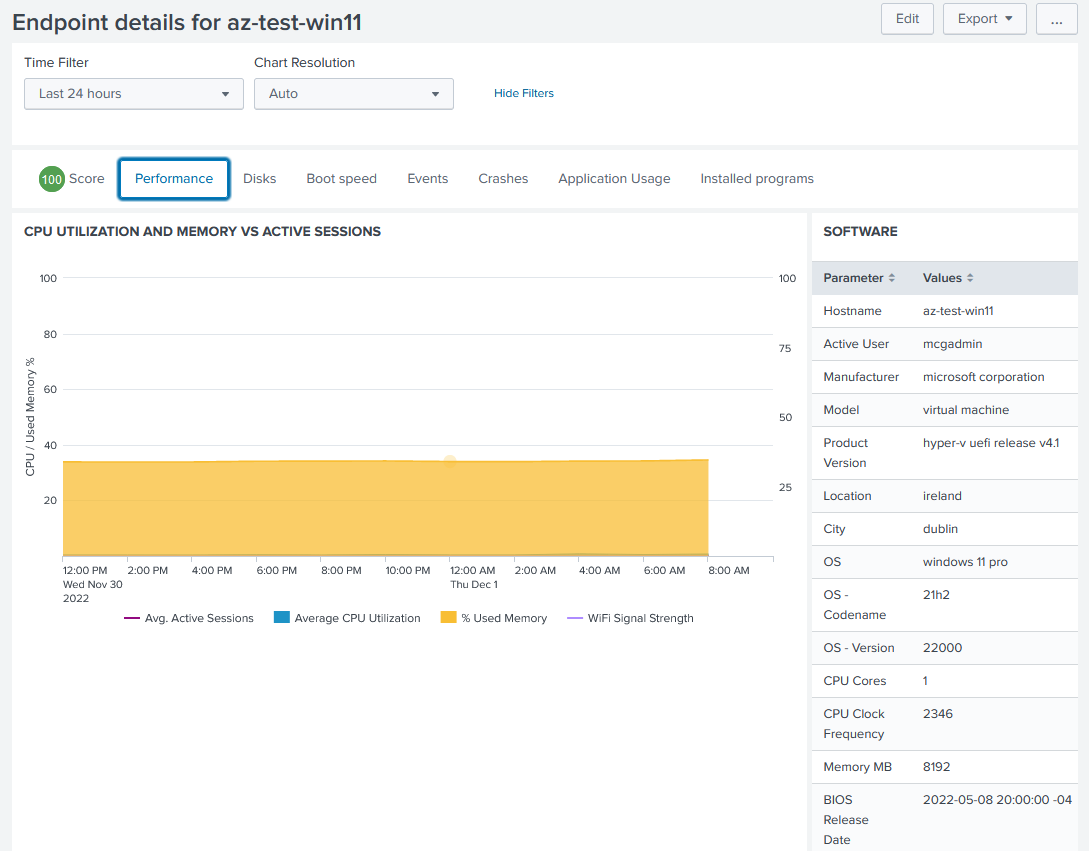

By clicking on the View action the user is redirected to the main Endpoint dashboard with full details about the Endpoint:
