Displays useful information regarding the overall health, performance, users, locations, browsers, and network data related to the installed web applications.
Divided in 9 tabs:
Data is obtained from the monitored web applications and categorised using colored fields represented by Poor (red), Fair (yellow), and Good (green) for faster analysis and issues detection.

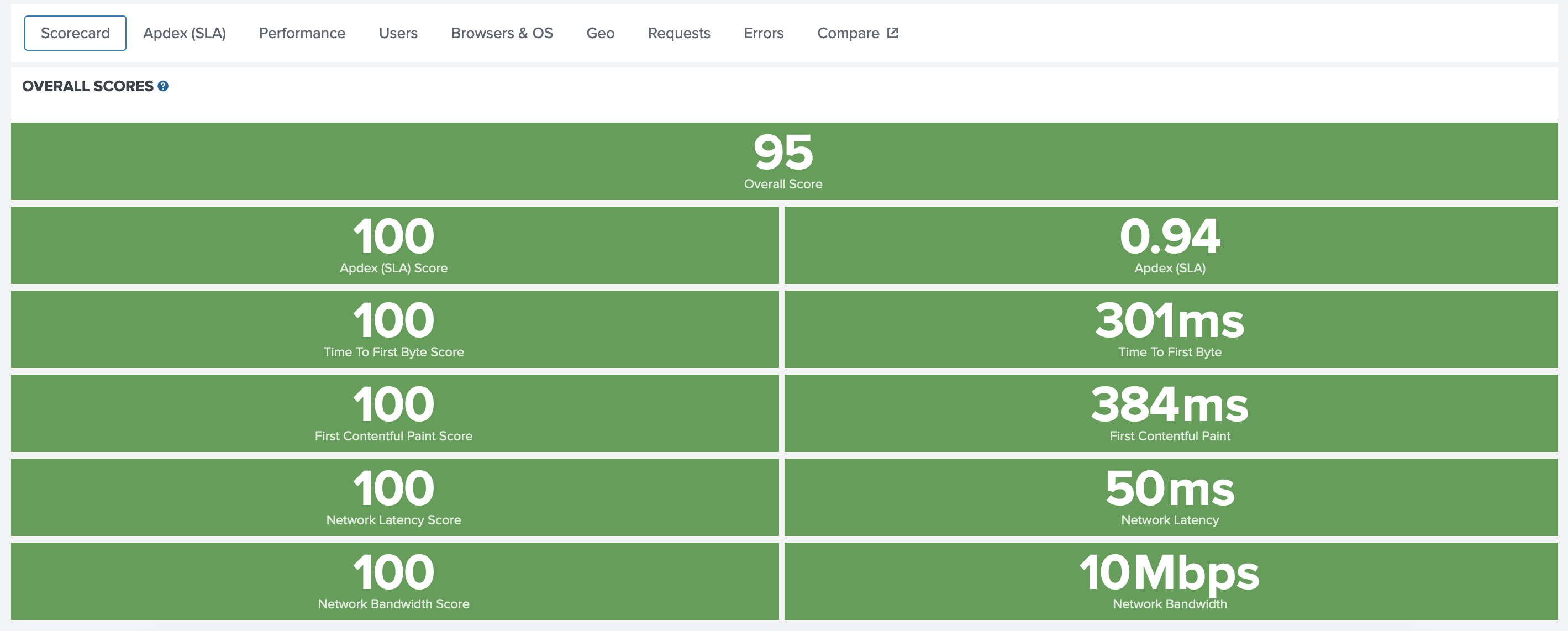

Scorecard
General overview of web application's performance. Displays the overall scores for Apdex (SLA), Time To First Byte, First Contentful Paint, Network Latency and Network Bandwidth metrics.
When using this tab, click the cards to drill down into additional details.
-
Metrics
Overall Score: Application's performance overall points. Value is the total number of points.
Apdex (SLA): Application Performance Index, also known as Apdex, is an open standard intended to simplify reports of application performance. The closer the value is to 1, the better the performance.
Time To First Byte: Metric that measures the time between the request for a resource and when the first byte of a response begins to arrive. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
First Contentful Paint: Measures the time from when the page starts loading to when any part of the page's content is rendered on the screen. For this metric, "content" refers to text, images (including background images), and elements. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
Network Latency: It shows the time that data takes to transfer across the network. Calculated value is the median and expressed as milliseconds (ms).
Network Bandwidth: Speed that data is transferred between a device and the internet. Calculated value is the median and expressed as megabits per second (Mbps).
Median: Is the middle value in a data set. 50% of data are under the median and 50% are over the median. Also known as 50th percentile.
-
Thresholds
Colored fields are categorised using the following thresholds:
Metric Scores Poor (40 points) Fair (80 points) Good (100 points) Overall Score 0 to 40 points 41 to 80 points From 81 points Apdex (SLA) 0.00 to 0.70 0.71 to 0.85 0.86 to 1.00 Time To First Byte From 1,801 ms 801 to 1,800 ms 0 to 800 ms First Contentful Paint From 3,001 ms 1,801 to 3,000 ms 0 to 1,800 ms Network Latency From 251 ms 101 to 250 ms 0 to 100 ms Network Bandwidth 0 to 2 Mbps 3 to 5 Mbps From 6 Mbps

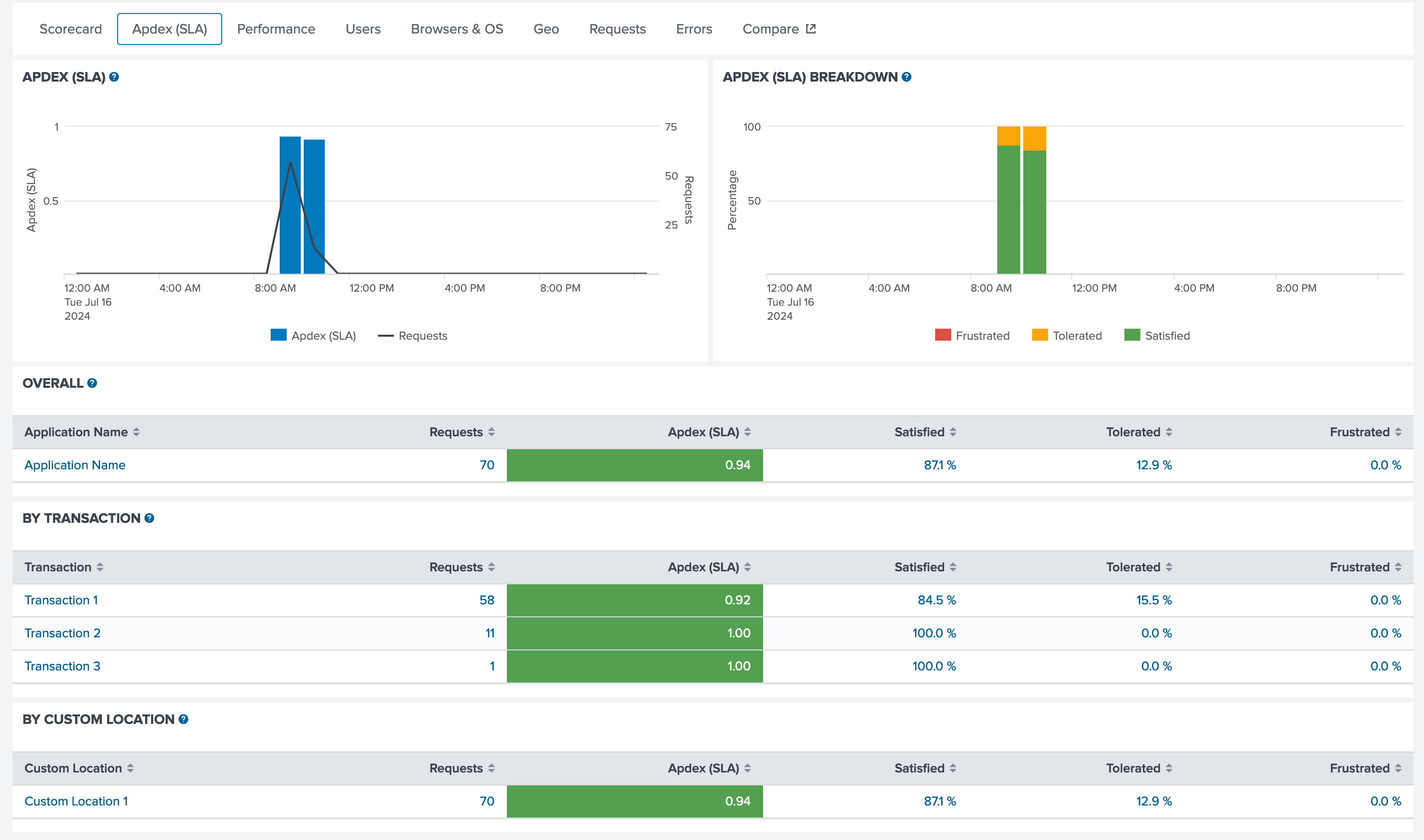

Apdex (SLA)
Application Performance Index overview detailing Satisfied, Tolerated, and Frustrated transactions. When in this tab, click any table's row to access additional information.
-
Metrics
Requests: Amount of requests made by a client, via web application, to a server in order to retrieve information or other resource. Calculated value is the total count of requests.
Apdex (SLA): Application Performance Index, also known as Apdex, is an open standard intended to simplify reports of application performance. The closer the value is to 1, the better the performance.
Satisfied: Transaction time met the SLA target. Value is the total percentage (%).
Tolerated: Transaction time is between the Tolerated and Frustrated SLA targets. Value is the total percentage (%).
Frustrated: Transaction time is above the Frustrated SLA target. Value is the total percentage (%).
-
Thresholds
Colored fields are categorised using the following thresholds:
Metric Poor Fair Good Apdex (SLA) 0.00 to 0.70 0.71 to 0.85 0.86 to 1.00

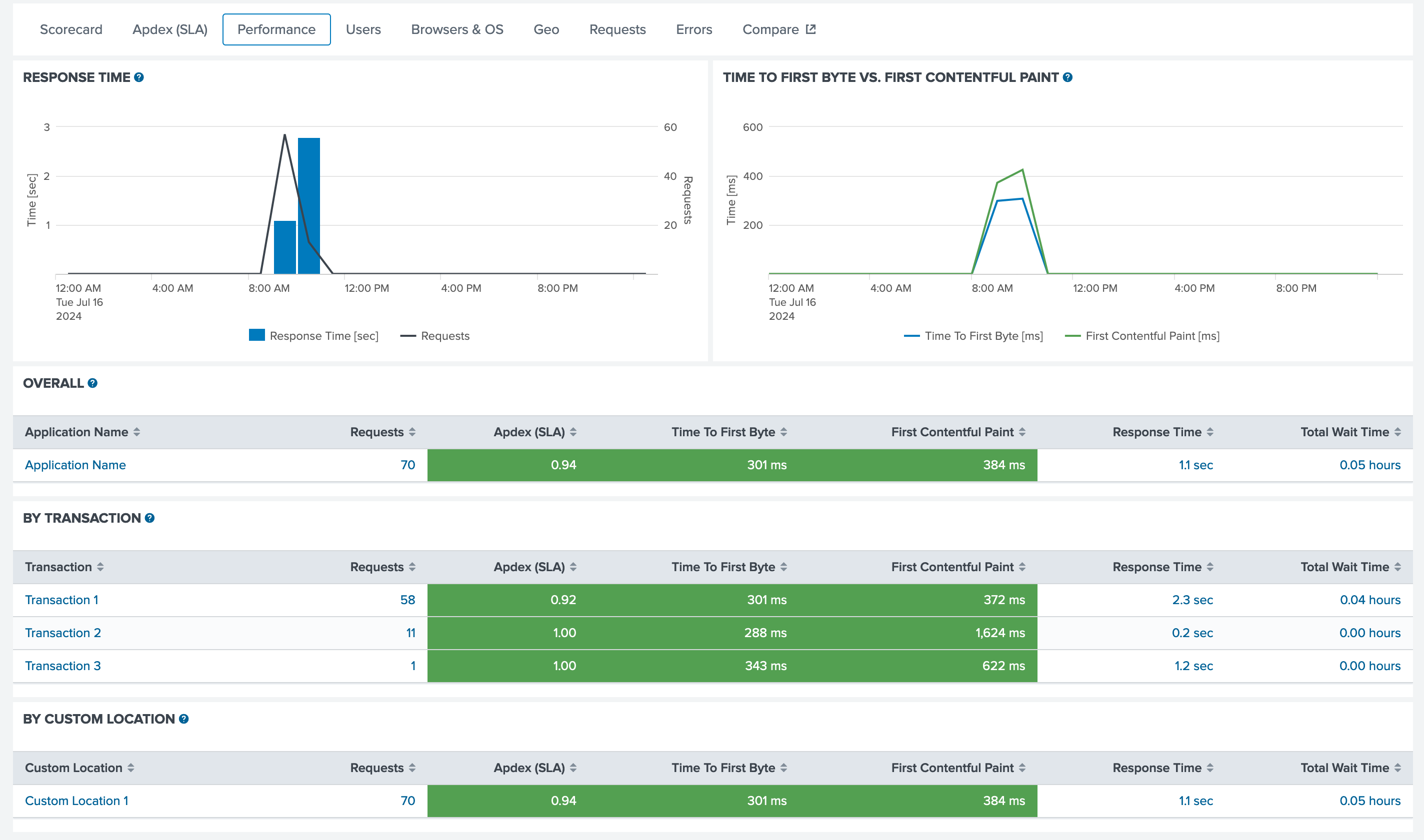

Performance
Web application's performance analysis with the overall data, transactions and custom locations. While navigating in this tab, click any table's row to access more details.
-
Metrics
Requests: Amount of requests made by a client, via web application, to a server in order to retrieve information or other resource. Calculated value is the total count of requests.
Apdex (SLA): Application Performance Index, also known as Apdex, is an open standard intended to simplify reports of application performance. The closer the value is to 1, the better the performance.
Time To First Byte: Metric that measures the time between the request for a resource and when the first byte of a response begins to arrive. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
First Contentful Paint: Measures the time from when the page starts loading to when any part of the page's content is rendered on the screen. For this metric, "content" refers to text, images (including background images), and elements. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
Response Time: Time it takes for a request from a user to receive a response from a server. Value is expressed as seconds (sec).
Total Wait Time: Total amount of time it takes to process the requests. Value is expressed as hours.
Median: Is the middle value in a data set. 50% of data are under the median and 50% are over the median. Also known as 50th percentile.
-
Thresholds
Colored fields are categorised using the following thresholds:
Metric Poor Fair Good Apdex (SLA) 0.00 to 0.70 0.71 to 0.85 0.86 to 1.00 Time To First Byte From 1,801 ms 801 to 1,800 ms 0 to 800 ms First Contentful Paint From 3,001 ms 1,801 to 3,000 ms 0 to 1,800 ms

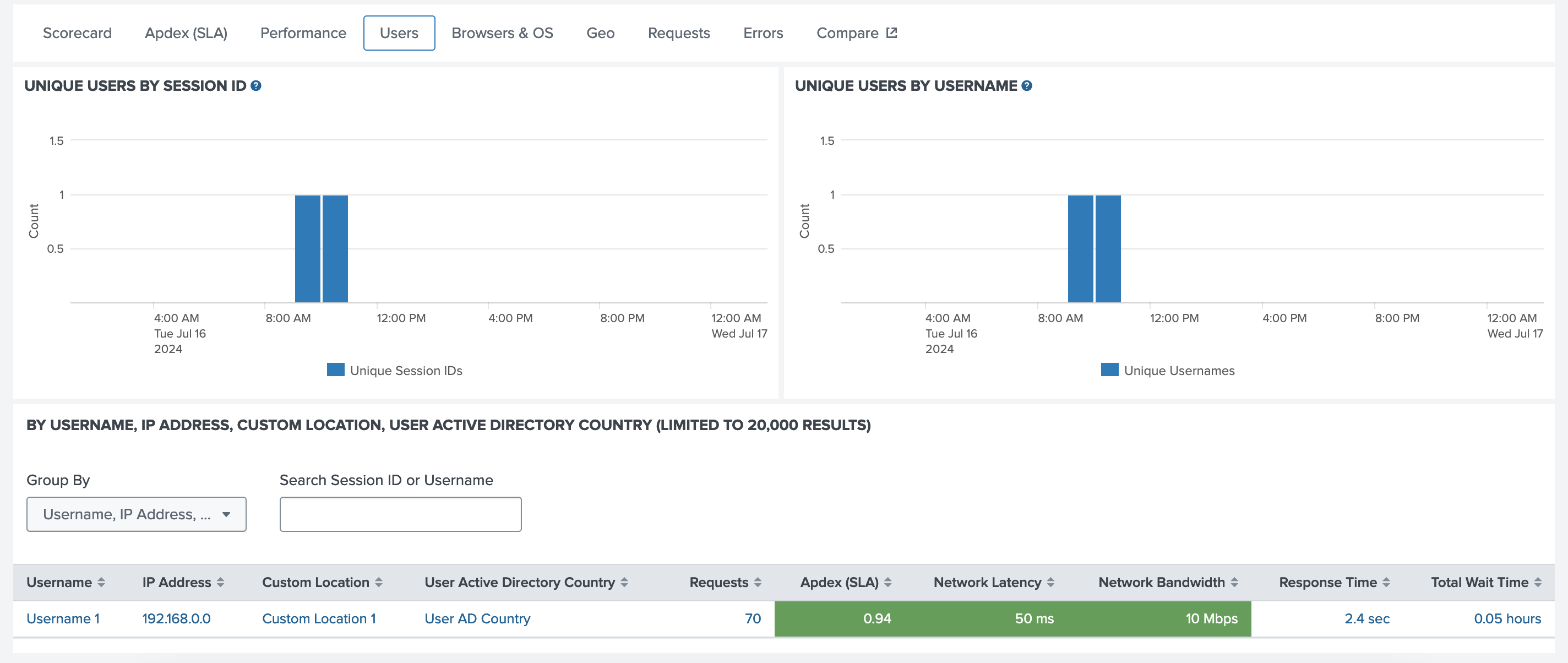

Users
Displays data regarding the user's network information. Use the Group By option to split data by different dimensions, such as: Username, IP Address, and Locations.
In addition, it is possible to click the table's row to drill down into more information.
-
Metrics
Requests: Amount of requests made by a client, via web application, to a server in order to retrieve information or other resource. Calculated value is the total count of requests.
Apdex (SLA): Application Performance Index, also known as Apdex, is an open standard intended to simplify reports of application performance. The closer the value is to 1, the better the performance.
Network Latency: It shows the time that data takes to transfer across the network. Calculated value is the median and expressed as milliseconds (ms).
Network Bandwidth: Speed that data is transferred between a device and the internet. Calculated value is the median and expressed as megabits per second (Mbps).
Response Time: Time it takes for a request from a user to receive a response from a server. Value is expressed as seconds (sec).
Total Wait Time: Total amount of time it takes to process the requests. Value is expressed as hours.
Median: Is the middle value in a data set. 50% of data are under the median and 50% are over the median. Also known as 50th percentile.
-
Thresholds
Colored fields are categorised using the following thresholds:
Metric Poor Fair Good Apdex (SLA) 0.00 to 0.70 0.71 to 0.85 0.86 to 1.00 Network Latency From 251 ms 101 to 250 ms 0 to 100 ms Network Bandwidth 0 to 2 Mbps 3 to 5 Mbps From 6 Mbps

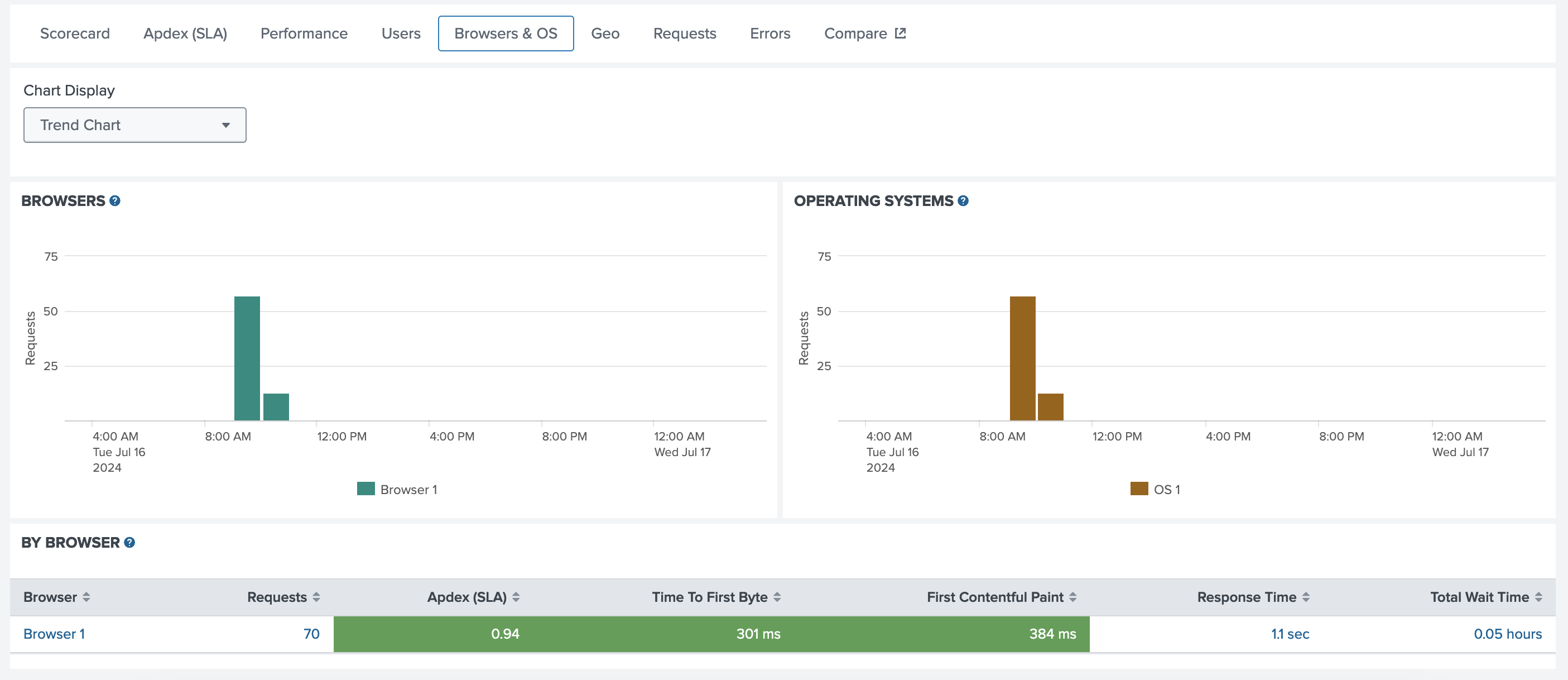

Browsers & OS
Access information related to the browsers and operating systems running the monitored web applications. Using the Chart Display option will switch the graphs between Trend and Pie.
When analysing data in this tab, click the table's row to display more details.
-
Metrics
Requests: Amount of requests made by a client, via web application, to a server in order to retrieve information or other resource. Calculated value is the total count of requests.
Apdex (SLA): Application Performance Index, also known as Apdex, is an open standard intended to simplify reports of application performance. The closer the value is to 1, the better the performance.
Time To First Byte: Metric that measures the time between the request for a resource and when the first byte of a response begins to arrive. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
First Contentful Paint: Measures the time from when the page starts loading to when any part of the page's content is rendered on the screen. For this metric, "content" refers to text, images (including background images), and elements. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
Response Time: Time it takes for a request from a user to receive a response from a server. Value is expressed as seconds (sec).
Total Wait Time: Total amount of time it takes to process the requests. Value is expressed as hours.
Median: Is the middle value in a data set. 50% of data are under the median and 50% are over the median. Also known as 50th percentile.
-
Thresholds
Colored fields are categorised using the following thresholds:
Metric Poor Fair Good Apdex (SLA) 0.00 to 0.70 0.71 to 0.85 0.86 to 1.00 Time To First Byte From 1,801 ms 801 to 1,800 ms 0 to 800 ms First Contentful Paint From 3,001 ms 1,801 to 3,000 ms 0 to 1,800 ms

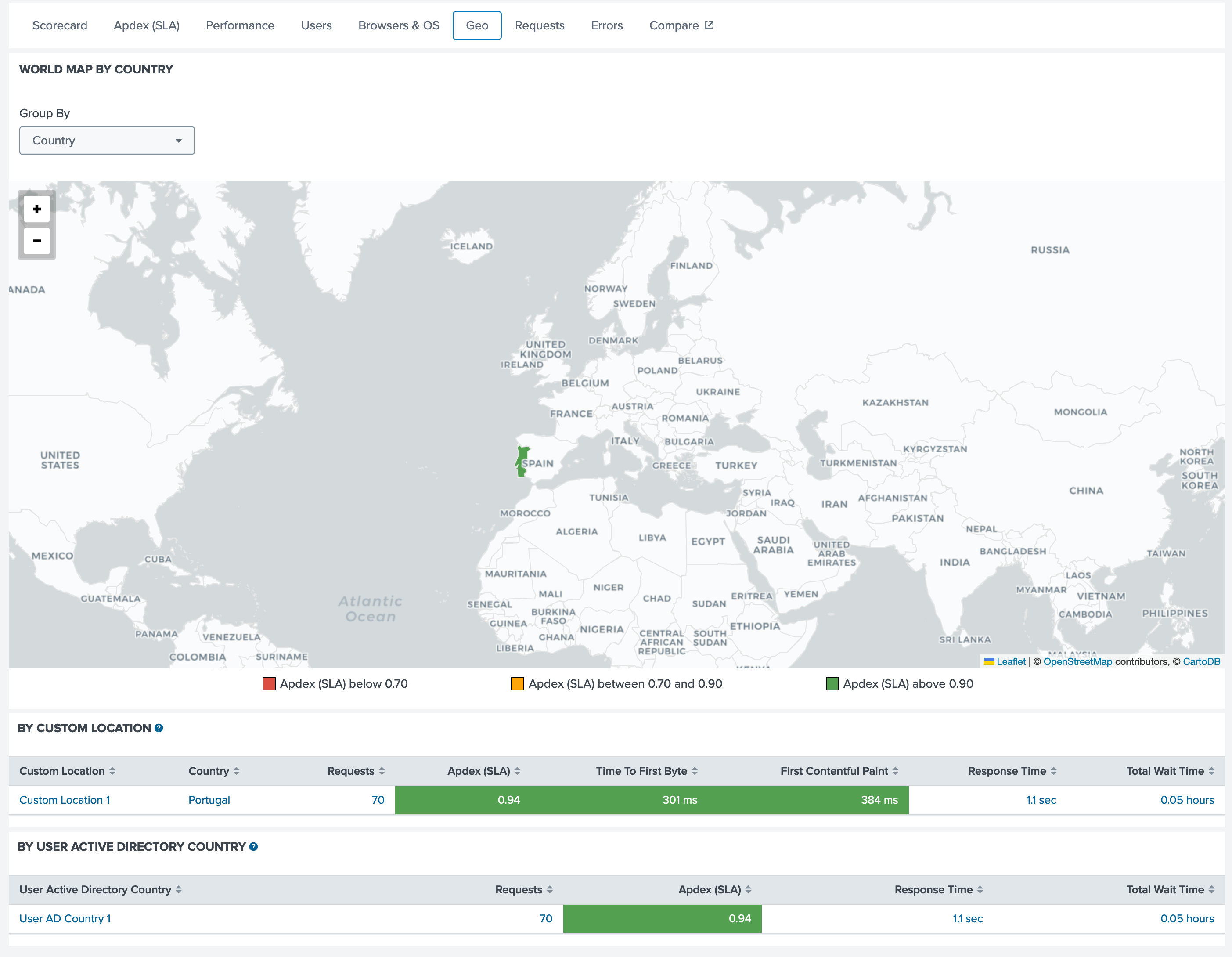

Geo
Web application analysis based on country and locations, with a graphic world map for easy data analysis.
In this tab, click the country of interest in the world map to display additional information. Also, it is possible to click any table's row to drill down into further details.
-
Metrics
World map: Graphic world map for data display and analysis. Click on a country for further details.
Requests: Amount of requests made by a client, via web application, to a server in order to retrieve information or other resource. Calculated value is the total count of requests.
Apdex (SLA): Application Performance Index, also known as Apdex, is an open standard intended to simplify reports of application performance. The closer the value is to 1, the better the performance.
Time To First Byte: Metric that measures the time between the request for a resource and when the first byte of a response begins to arrive. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
First Contentful Paint: Measures the time from when the page starts loading to when any part of the page's content is rendered on the screen. For this metric, "content" refers to text, images (including background images), and elements. Calculated value is the median and expressed as milliseconds (ms). This value is stored for Page Loads only, not for resource timings.
Response Time: Time it takes for a request from a user to receive a response from a server. Value is expressed as seconds (sec).
Total Wait Time: Total amount of time it takes to process the requests. Value is expressed as hours.
Median: Is the middle value in a data set. 50% of data are under the median and 50% are over the median. Also known as 50th percentile.
-
Thresholds
Colored fields are categorised using the following thresholds:
Metric Poor Fair Good Apdex (SLA) 0.00 to 0.70 0.71 to 0.85 0.86 to 1.00 Time To First Byte From 1,801 ms 801 to 1,800 ms 0 to 800 ms First Contentful Paint From 3,001 ms 1,801 to 3,000 ms 0 to 1,800 ms
Requests
Displays information regarding the requests made by URL. Use the Show option to switch between the types of requests and Search URL to filter results.
When using this tab, click any table's row to access complementary information.
-
Metrics
Requests: Amount of requests made by a client, via web application, to a server in order to retrieve information or other resource. Calculated value is the total count of requests.
Apdex (SLA): Application Performance Index, also known as Apdex, is an open standard intended to simplify reports of application performance. The closer the value is to 1, the better the performance.
Response Time: Time it takes for a request from a user to receive a response from a server. Value is expressed as seconds (sec).
Total Wait Time: Total amount of time it takes to process the requests. Value is expressed as hours.
Errors Occurred: Total amount of errors generated by request.
-
Thresholds
Colored fields are categorised using the following thresholds:
Metric Poor Fair Good Apdex (SLA) 0.00 to 0.70 0.71 to 0.85 0.86 to 1.00

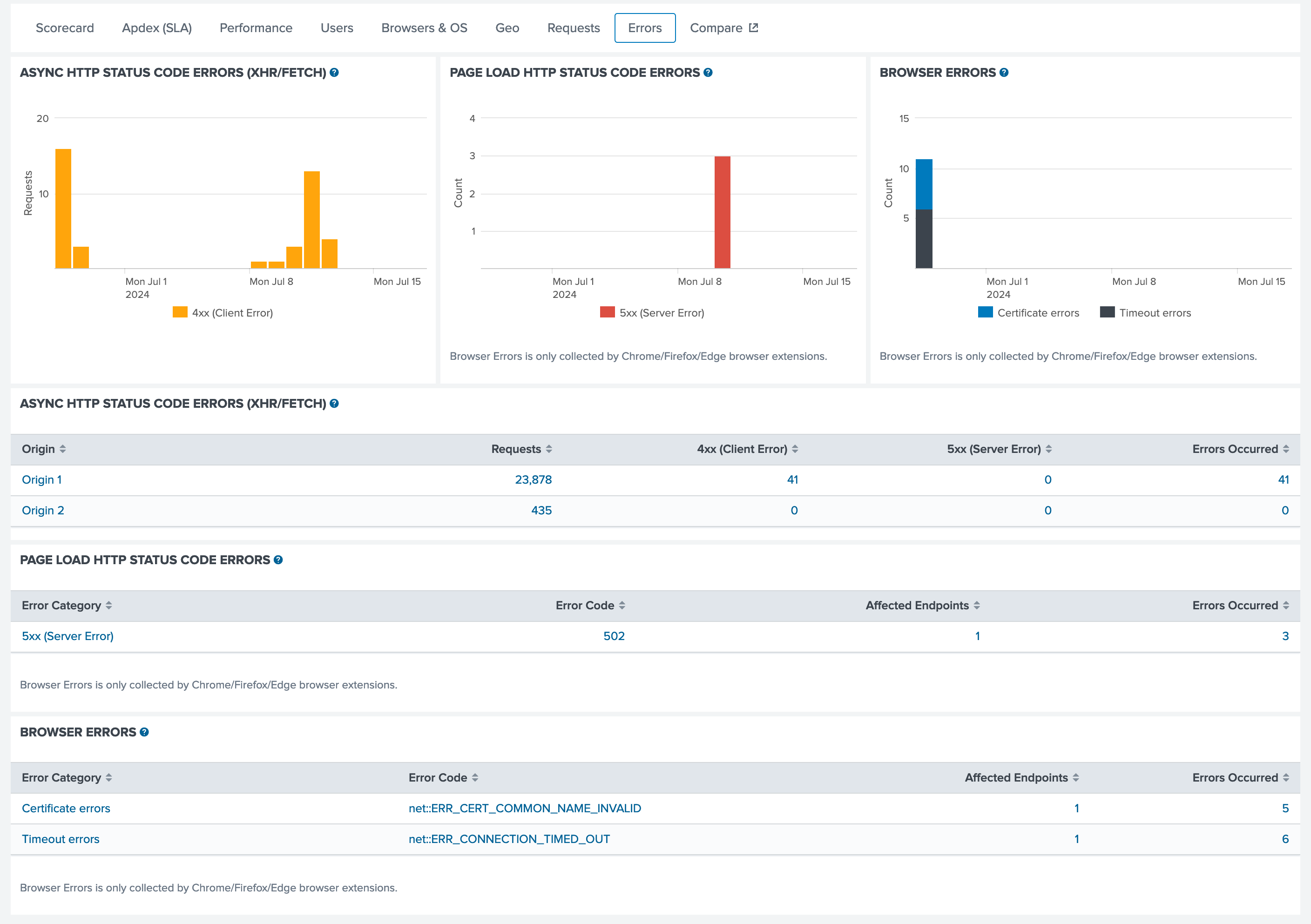

Errors
Access web application's errors data generated by requests and browsers. When analysing data in this tab, click the table's row to drill down into more details.
-
Metrics
Requests: Amount of requests made by a client, via web application, to a server in order to retrieve information or other resource. Calculated value is the total count of requests.
4xx (Client Error): These status codes are intended for situations in which the error may have been caused by the client. Value is the total number of errors.
5xx (Server Error): These status codes indicate cases where the server encountered an error or is unable to process the request. Value is the total number of errors.
Error Code: Code that indicates the nature of an error and why it occurred.
Affected Endpoints: Total amount of endpoints or nodes affected by the errors.
Errors Occurred: Total amount of errors generated by request.
Compare
Opens a Performance Comparison report for the selected web application.
